ROBOTIS
KEY ROBOT APPLICATIONS
HOTELS
Round-The-Clock Delivery of Amenities
- Toiletries
- Newspapers
- Bathrobes & Towel Service
- Premium Bedding
- Extra Pillows and Blankets
- 24 Hour Eyes-On Security
- Laundry Collection & Delivery Service
Guests, diners, patients, and people engaging with businesses everywhere expect a heightened level of service. This expectation comes at a time of staff shortages, tightened budgets, and customers valuing separation from employees and other members of the public. The ROBOTIS GAEMI provides the perfect solution to that dilemma by delivering an easy to operate, completely self-sufficient robot assistant that takes care of the menial tasks and frees up hoteliers, restauranteurs, nurses, and others to go on with their work.

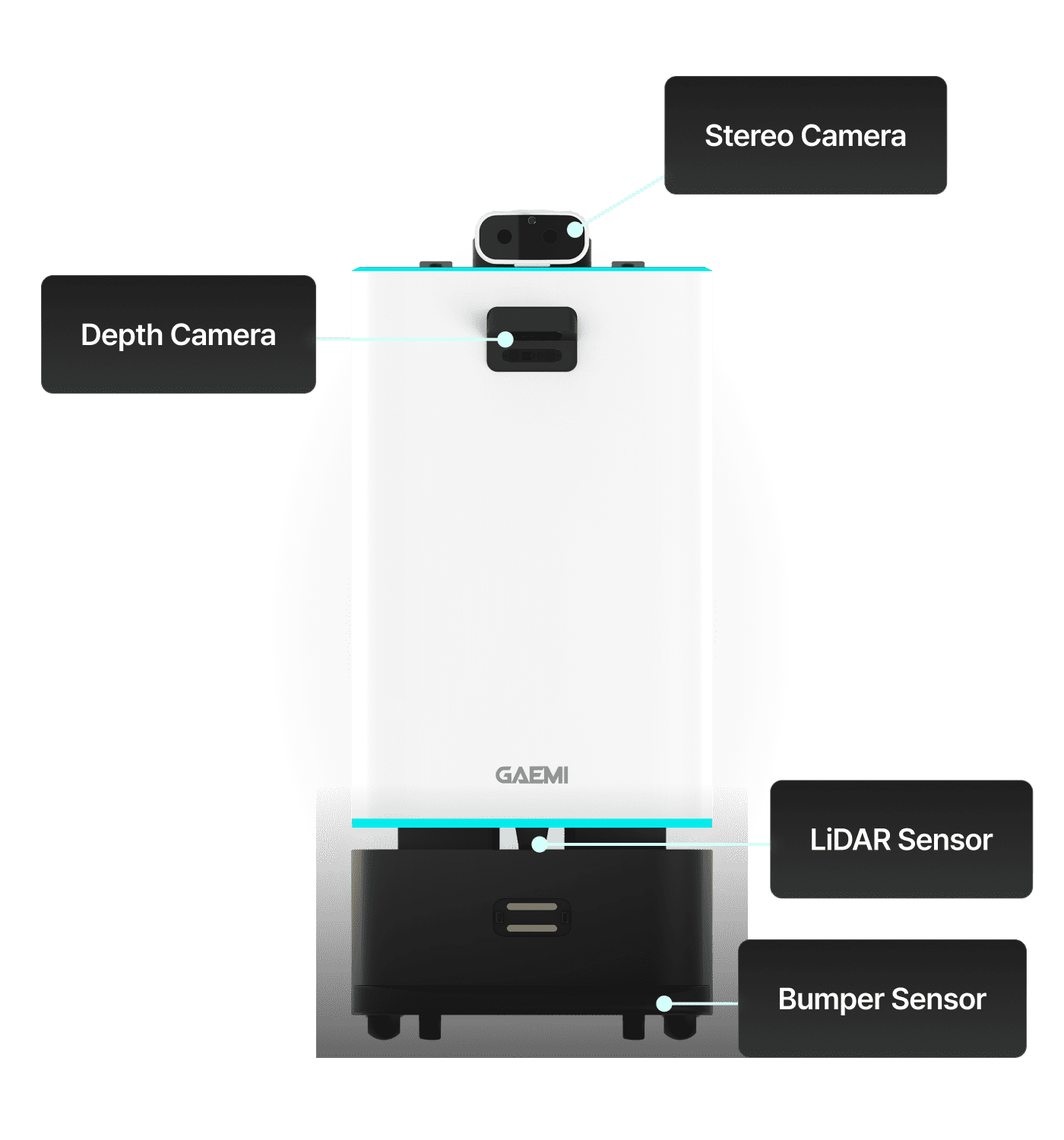

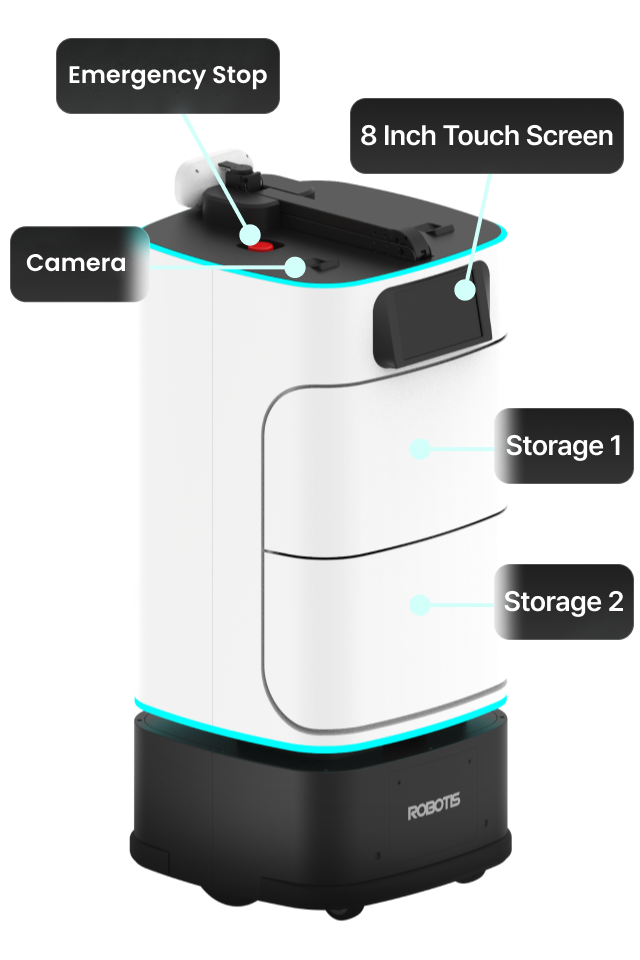

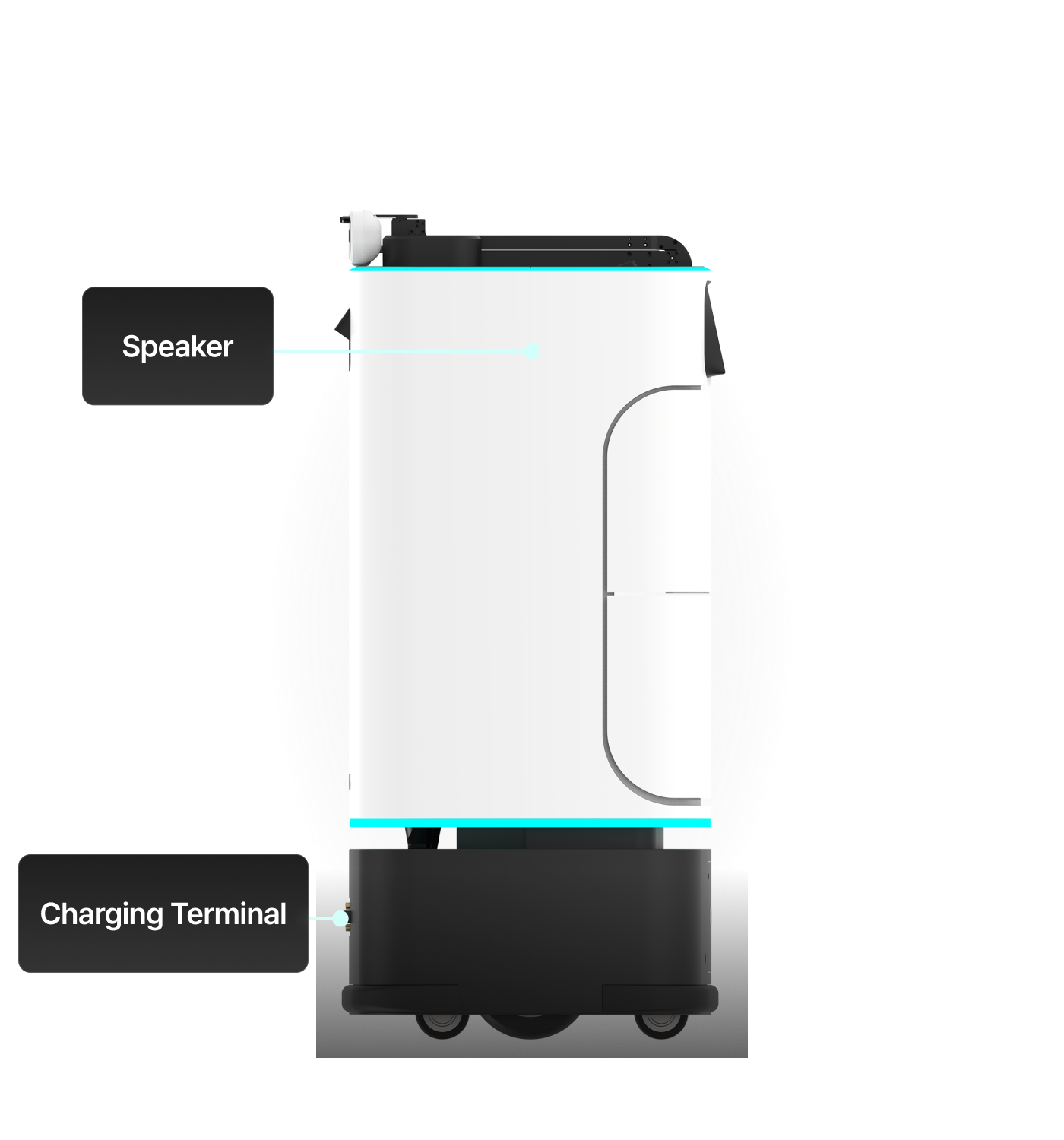

SPECIFICATIONS
GAEMI is an indoor self-driving robot based on the proven technology and industry expertise of ROBOTIS, a global robot solutions provider that has been building and selling robots worldwide for decades.
SPEED
DRIVING SPEED 0.5M/S,
MAXIMUM SPEED 1.2M/S
STORAGE COMPARTMENTS
- Drawer: 2
- Swing door: 2~4
- Tray: 3
TOUCH SCREEN
8 INCHES
SUPPORTED LANGUAGES
KOREAN, ENGLISH, JAPANESE, CHINESE
OPERATION TIME
UP TO 24 HOURS
DIMENSIONS
540 X 500 X 1,150 (L X W X H; MM)
WEIGHT
75KG (165 LBS)
CARRYING CAPACITY OF 3 TYPES
- - Drawer: 20kg, 10kg (22 lbs) each
- - Swing door: 20kg, 10kg (22 lbs) each
- - Tray: 30kg, 10kg (22 lbs) each
INDOOR SERVICE ROBOT
GAEMI IS
an autonomous indoor robot designed to provide small goods delivery services to organizations including hotels, hospitals, and high-rise buildings.
GAEMI utilizes it’s integrated arm to interact with existing human-centric infrastructure to allow deployment in existing environments without requiring redesigns for autonomous operation.
ROBOTIS
USE CASES
Hotel
Room service, Amenity, Food and Drink Delivery
Hospital
Medicine and medical supply delivery
Office Complex
Small parcel, mail, and document delivery service within office complexes
OUR FEATURES
AUTONOMOUS NAVIGATION
UTILIZES ADVANCED MAPPING AND PATH PLANNING TO SAFELY AVOID PEOPLE AND OBJECTS WHILE NAVIGATING TO ITS DESTINATION.
INTEGRATED STORAGE
SAFELY STORE ITEMS IN ONE OF TWO INTEGRATED SECURE STORAGE BOXES. CUSTOMIZABLE STORAGE OPTIONS ARE ALSO AVAILABLE.
MULTI-PURPOSE MANIPULATION
THE INTEGRATED MANIPULATOR USES AN ATTACHED 3D CAMERA AND PROBE TO PRESS BUTTONS, SCAN ACCESS CARDS, AND KNOCK ON DOORS.
COMPANION APP
GAEMI’S COMPANION APP PROVIDES A MOBILE ORDERING SYSTEM FOR CUSTOMERS ALONG WITH REALTIME ROBOT MONITORING FOR ORGANIZATIONS.
CUSTOMIZABLE SKINS
GAEMI’S EXTERIOR SKIN CAN BE CUSTOMIZED TO MATCH YOUR ORGANIZATION.
MULTI-FLOOR SERVICE
THE ABILITY TO PRESS EXISTING BUTTONS OR USE WIRELESS CAPABILITIES TO CONTROL ELEVATORS ALLOWS GAEMI TO MOVE BETWEEN FLOORS FREELY
TOUCH SCREEN CONTROL
MULTILINGUAL (KOR, ENG, CHN, JPN) VOICE SERVICES AND INTUITIVE TOUCH SCREEN OPERATION MAKE GAEMI EASY TO OPERATE.
AUTONOMOUS DOCKING
GAEMI AUTOMATICALLY RETURNS TO ITS DOCKING STATION TO CHARGE AFTER COMPLETING ITS DELIVERIES TO ENSURE CONTINUOUS UNINTERRUPTED OPERATION.
STORAGE
STORAGE TYPES
Three available storage options to accommodate different service environments
HOTEL DELIVERY SERVICE EXAMPLE CASE
GAEMI can safely deliver amenities, food, and beverages to hotel guests, while protecting their privacy and health through contactless delivery.
ROOM SERVICE ORDER IS RECEIVED
THE REQUESTED ITEM IS PLACED IN GAEMI'S STORAGE, AND THE DESTINATION IS ENTERED
DELIVERY BEGINS
GAEMI USES THE ELEVATOR TO MOVE BETWEEN FLOORS
GAEMI EXITS THE ELEVATOR ON THE CORRECT FLOOR AND CONTINUES TO THE DESTINATION
KNOCK ON THE GUEST'S DOOR TO INDICATE ARRIVIAL AT THE DESTINATION
GUEST COLLECTS ITEMS AND CONFIRMS SUCCESSFUL DELIVERY
GAEMI RETURNS TO THE CHARGING STATION
GAEMI PROVIDES SERVICES IN THE FOLLOWING LOCATIONS.
PROCESS
GAEMI INSTALLATION PROCESS
1 .
ON-SITE MEETING
2 .
ENVIRONMENTAL DATA COLLECTION AND ROBOT LEARNING
3 .
TEST OPERATION AND USER TRAINING
4 .
SERVICE LAUNCH
